Features & Benefits:

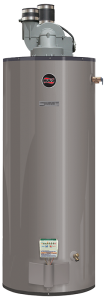

Power Direct Vent commercial water heaters provide outside air for combustion, which eliminates negative air pressure issues in tight construction. Models are available in 47,000 to 75,100 Btu/h, with a maximum temperature setting of 160 degrees Fahrenheit for 50-gallon models and 180 degrees Fahrenheit for 75-gallon models. This water heater is specifically designed where medium quantities of hot water are required. Typical applications include large residences, small restaurants, apartments and small office buildings.

FVIR Compliant – Maintenance free – no filter to clean

Flammable Vapor Detection Sensor – Protective control system that disables the heater in the presence of flammable vapor accumulation

Flexible Venting Options

  • Long venting lengths up to 100 feet
  • PVC, ABS, or CPVC vent pipe options
  • Vertical or horizontal termination

Self-Diagnostic System – Integrated self-diagnostic system control takes the guess work away

Environmentally Friendly Burner – 40ng/J compliant NOx design for low nitrous oxide emissions

High Altitude Compliant – Models are certified for applications up to 7,700 or 10,200 feet above sea level

Self-Cleaning

  • Reduces fuel costs
  • Provides more hot water

Longer Life

  • Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
  • Provides longer tank life than using standard magnesium anode rods

Plus…

  • Durable silicon nitride ignitor (HSI)
  • Standard 110 volt electrical connection
  • Exceeds National Appliance Energy Conservation Act (NAECA) and ASHRAE requirements
 DESCRIPTION
POWER DIRECT VENT MODELS
GAL CAP. MODEL NUMBER INPUT (BTU/H) NAT. & LP
50 GPDV50-65
65,000
50

GPDV50-65LP

47,000

75

GPDV75-75

75,100
75 GPDV75-76LP 75,100

Specifications

  • 47,000 - 75,100 BTU/Hr.
  • 50, 63 and 75 gallon capacities
  • Small jacket diameters
  • Flammable vapor detection sensor

  • US CSA (Star)
  • AHRI

Documents

Power Direct Vent

Warranties

Tank - 3 Years

Parts - 1 Year
