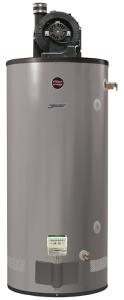

Power Vent commercial water heaters are designed for wherever medium duty quantities of hot water are required and offer up to 95 feet vent runs

Features:

Long life tank design – proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design.

Guardian System™

  • Air / fuel shut-off system offers double protection
  • Maintenance free – no filter to clean

Flammable Vapor Detection Sensor

  • Protective control system that disables the heater in the presence of flammable vapor accumulation

Flexible Venting Options

  • Long venting lengths up to 95 feet
  • PVC, ABS, or CPVC vent pipe options
  • Vertical or horizontal termination

New Quiet Blower

  • Less noise than ever before

Self-Diagnostic System

  • Integrated self-diagnostic system control takes the guesswork away

Environmentally Friendly Burner

  • Low NOx design for low nitrous oxide emissions

High Altitude Compliant

  • Certified for applications up to 7,700 feet above sea level

Longer Life

  • Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
  • Provides longer tank life than using standard magnesium anode rods

Additional Features

  • Durable silicon nitride ignitor (HSI)
  • Standard 110 volt electrical connection
  • Exceeds National Appliance Energy Conservation Act (NAECA) and ASHRAE requirements
  • Durable brass drain valve

Temperature and pressure relief valve – CSA/ASME rated and factory installed

Maximum Temperature Setting – 160°F

DESCRIPTION
 POWER VENT MODELS
GAL CAP. MODEL NUMBER INPUT (BTU/H)
NAT. & LP
75

GPV75-75FV-2

75,100

75

GPV75-75PFV-2

75,100

Specifications

  • 75,100 BTU/Hr.
  • Uses 3" or 4" schedule 40 PVC, CPVC or ABS pipe
  • Vents up to 95 feet
  • 75 gallon capacity

Energy Guide Details

Certifications

  • US CSA (Star)
  • AHRI

Documents

PowerVent

Warranties

Tank - 3 Years

Parts - 1 Year
