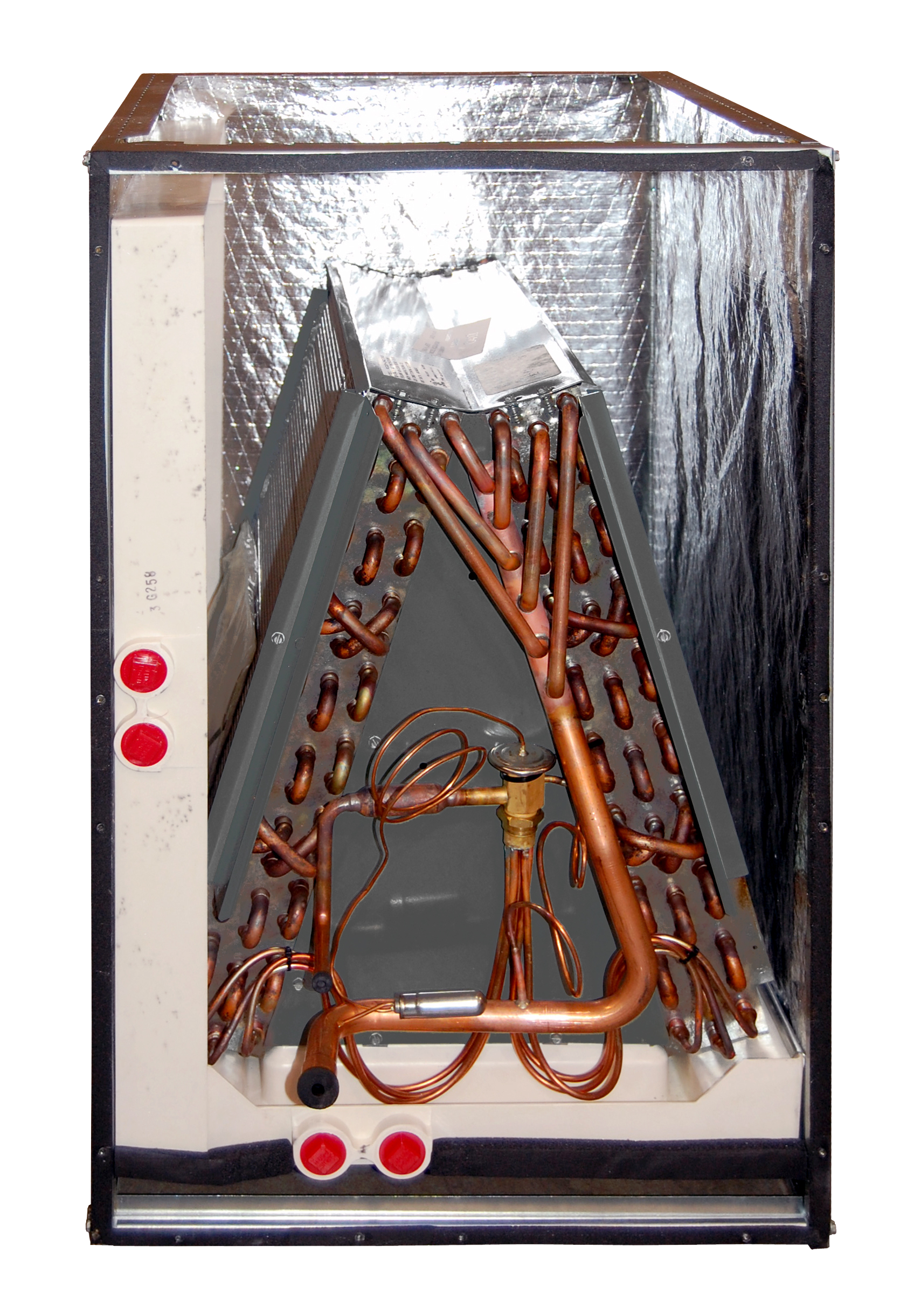

Ruud® Indoor Coils are designed for use with Ruud outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Ruud outdoor units, the coils provide a nominal capacity range from 24,000 BTU/HR [7.03 kW] to 60,000 BTU/HR [17.58 kW].

  • Constructed of aluminum fins bonded to internally grooved copper tubing.
  • Coils are tested at the factory with an extensive refrigerant leak check.
  • Coils have sweat refrigerant connections.
  • Ideally suited for new installations or add on air conditioning.
  • Features 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
  • Coils are AHRI certified for system application with variety of Ruud outdoor units.
  • Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
  • Compatible with Germicidal Light System (UV resistant)
  • Unique drain pan design maximizes application flexibility and condensate removal.

Specifications

  • R-410A
  • Airflow capacity 600-1.900 CFM
  • Up to 16 SEER AC, HP, Furnace, and A-Coil Cased no cover applications

Certifications

  • C UL  US Listed
  • R-410A

Documents

RCFH

Warranties

Conditional Parts - 10 Years (Registration Required)
