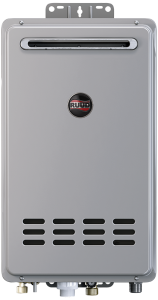

Tankless Mid-Efficiency 84 Outdoor
Ruud RUTG is a series of ultra low NOx, mid-efficiency tankless gas water heaters designed for continuous hot water
- .81 UEF with all-copper heat exchanger
- Intelligent electronic controls designed to increase energy efficiency and safety
- Exclusive! Water savings setting –upon activation, this setting can save homeowners up to 1,100 gallon of water per year1 by decreasing the flow of water through the pipes until the temperature reaches the heater’s set temperature
- Low flow fixture compatible – Industry first minimum flow rate of .26 GPM and minimum activation flow rate of .40GPM ensures the user will receive hot water even in low demand situations
- Recirculation Pump Kit-Ready – Quickly pairs with our Recirculation Pump kit to provide instantaneous hot water at the tap2
Easy Installation and Service
- 1/2" Gas line compatibility on every model
- Exclusive! Maintenance Notice Setting alerts homeowner – flashing a warning code to call for service check
- Self-diagnostic system for easy installation and service
- Digital display shows temperature setting and maintenance codes
- 3"/5" concentric vent system with Integrated condensate collector
- Connects to Metal Fab. Inc., 3"/5"concentric venting without an adapter
- Hot-start programming helps minimize fluctuation in water temperature, referred to as “cold water sandwich”, during periods of frequent on/off operation
- Exclusive! Guardian OFW™ overheat film wrap
- EZ-Link™ cable available for higher demand applications to connect two tankless units to operate as one
- Manifold up to six units with an optional MIC-6 manifold control board
- Manifold up to 20 units with the optional MIC-185 plus the MICS-180 manifold control assembly
High Altitude Compliant
- High-altitude capability – up to 8,400 ft. elevation above sea level 3
- Environmentally friendly ultra low NOx burner meets SCAQMD rule 1146.2 requirements
- Digital remote control and 10 ft. of thermostat wire included
- Supplied with a 120-volt power cord(indoor models only)
- Freeze protection to -30°F
- EZ- Spec™ Sizing Software – advanced online tool that takes the guess work out of sizing tankless applications–available at www.ruud.com/tankless
|84 TANKLESS MODELS|
|TYPE||GAL PER MIN.||MODEL NUMBER||ENERGY
|8.4 at 35° F rise
6.7 at 45° F rise
||8.4 at 35° F rise
6.7 at 45° F rise
- .81 UEF
- 11,000 - 180,000 BTU max.
- 8.4 gal./min. at 35° F rise max.
- 6.6 gal./min. at 45° F rise max.
Tankless 84 Outdoor
- Revit Model (RTG-64XL-95XL)
- Warranty Information
- Demand Pump Kit Feature Sheet
- Tax Credit Information
- Mid-Efficiency Brochure
- Available Accessories
- Gas Piping Information
- Specification Sheet
- Parts and Accessories Catalog
- Technical Service Bulletin Understanding the Uniform Energy Factor
- Full Line Brochure
- Use and Care Instructions
- Web Product Image
- 150x150 Product Image
- 400x400 Product Image
- Hi-Res Product Image
Parts – 5 Years
Labor – 1 Year
Heat Exchanger – 12 Years
