Commercial Packaged Air Conditioners

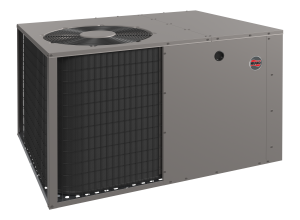

RACSYB Endeavor® Line Choice® Series Residential Packaged Dedicated Horizontal Air Conditioners
Energy-efficient: Eco-friendly R-454B Refrigerant offering reduced carbon footprint
Quality Compressor: State-of-the-art scroll compressor is standard on all models, offering superior efficiency and reliability
High Pressure Switches: Ensure long compressor life
All-Aluminum Coils: Evaporator and condenser coils are designed to optimize heat transfer, minimize footprint, and increase durability
ECM Blower Motor: Fixed torque energy-efficient brushless DC ECM motor, provides 5 speeds
Permanently Lubricated Condenser Motor: A heavy-duty PSC motor for long-lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow
Low Voltage Transformer: Includes 3 Amp fuse to protect low voltage circuit
Liquid Line Filter Drier: Factory installed at a convenient location for service
Designed Using Galvanized Steel: With a polyester urethane coat finish, the 950-hour salt spray finish is 1.5 mil thick and resists corrosion
Compact Footprint and Profile: Makes the RACSYB Series easy to install and transport
0" Clearance: To combustibles on duct side of the unit allows for installations in tight areas
Wire Guard Coated with Eco-Friendly Epoxy and Plastic Mesh Hail Guard: A guard that will never rust and protects the units coil from being damaged
Raised Base Pan: Allows water to drain away from the unit
Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the front of the unit. High/low service ports allow refrigerant access without disrupting operation
Easy Access: To the evaporator coil for cleaning, blower assembly removal and general maintenance
Drain Trap: Design optimizes drainage capabilities
Removable Top Grille Assembly: Allows ease of service to the fan motor
Easy to Field-Install: 5-20kW heater kits
Notched Base Rail Supports: Allow units to be set on roof curbs or metal stands
Specifications
Cooling Efficiency: 13.4 SEER2
Nominal Sizes: 2 - 5 Tons [7.0 - 17.6 kW]
Refrigerant Type: R-454B
Certifications
Documents
RACSYB Endeavor® Line Choice® Series iR Residential Packaged Dedicated Horizontal Air Conditioners
Warranties
Residential Applications:
Conditional Parts (Registration Required): 10 years
Compressor: 10 Years
Commercial Applications:
Parts: 1 Year
Compressor: 5 Years
