Commercial Packaged Heat Pumps

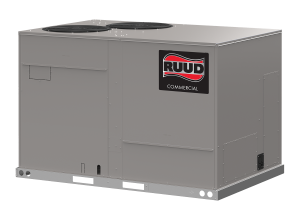

RHPDYC Renaissance™ Line Achiever Plus® Series Packaged Heat Pump
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features through the standard ServiceSmart package as well as a new advanced unitary controller that arrives with factory pre-configured control sequences to reduce set-up and commissioning time and is BACnet® MS/TP and IP native for seamless integration with building automation systems (BAS). Higher efficiency performance is delivered through innovative technologies such as the backward-curve direct-drive indoor blower, full MicroChannel coils, and tandem compressors with multiple stages of operation. Units exceed ASHRAE 90.1 energy efficiency levels and deliver powerful cooling operation up to 125°F.
Standout Features:
- Slide-out backward-curved direct drive indoor blower
- Patented flex-fit filter rack, qwik-slide blower assembly and qwik-clean drain pain for quick, easy service and
maintenance
- PlusOne® SmartShield™ with patented microchannel defrost system
- Field convertible airflow (downflow and horizontal)
- Backward-curve direct-drive indoor blower
- Universal 24V & BACnet® MS/TP- and BACnet IP-ready
Available power options: 208-230V / 3 phase / 60 Hz • 460V / 3 phase / 60 Hz
Limited Warranty (Commercial Applications): Parts – 1 Year • Compressor – 5 Years. Additional extended warranty packages available through ProtectionPlus®.
All units are factory run tested and shipped with R-454B refrigerant charge.
Specifications
Nominal sizes: 6.5-10 Tons
Up to 17.6 IEER / 12 EER / 3.6 COP
Three stages of cooling and two -stages heating
Coil Type: Full MicroChannel
Standard Advanced Unitary Controller with DDC
Refrigerant Type: R-454B with factory-installed sensor
Certifications
Documents
RHPDYC Renaissance™ Line Achiever Plus® Series Packaged Heat Pump
Warranties
Commercial Applications
Compressor: 5 Years
Parts: 1 Year
