Commercial Packaged Heat Pumps

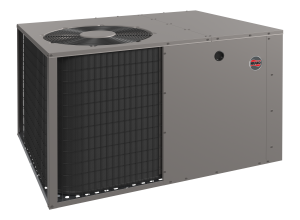

RHPSYB Endeavor® Line Choice® Series Residential Packaged Dedicated Horizontal Heat Pumps
Energy-efficient: Eco-friendly R-454B Refrigerant offering reduced carbon footprint
First in Industry Patented Hot Gas Defrost: Ensures complete, worry-free defrost
Quality Compressor: State-of-the-art scroll compressor is standard on all models, offering superior efficiency and reliability
Hi/Low Pressure Switches: Ensure long compressor life
All Aluminum Coils: Provides high corrosion resistance, lower refrigerant volume
Designed Using Galvanized Steel: The finish passes 950 hours of salt spray per ASTM® Std. B117, offering enhanced durability
Compact Footprint and Profile: Makes the RHPSYB Series easy to transport and install
0" Clearance: To combustibles on duct side of the unit allows for installations in tight areas
Wire Guard Coated with Eco-Friendly Epoxy and Plastic Mesh Hall Guard: A guard that will never rust and protects the unit’s coil from being damaged
Raised Base Pan: Allows water to drain away from the unit
Easy Access: To the evaporator coil and blower assembly for cleaning and general maintenance
Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
Removable Top Grille Assembly: Allows ease of service to the fan motor
Five Minute Restart Time Delay: When the unit shuts down, a five minute delay keeps the unit from restarting, eliminating the highest cause of compressor failure
Liquid Line Filter Drier: Factory installed at a convenient location for service
Accessible Service Valves: Simplify servicing of the refrigeration system
Suction Accumulator: Provides protection from liquid flood back and future compressor failures
Permanently Lubricated Condenser Motor: A heavy-duty PSC motor for long-lasting reliability and quiet operation
Low Voltage Transformer: Includes 3 Amp fuse to protect low-voltage circuit
Drain Trap Included: Design optimizes drainage capabilities
Optional Electric Heat: Easy to field-install 5–20kW heater kits
Specifications
Nominal Sizes: 2 to 5 Tons [7.0 to 17.6 kW]
Cooling Efficiency: 13.4 SEER2
Heating Efficiency: 6.7 HSPF2
Refrigerant Type: R-454B
Certifications
Documents
RHPSYB Endeavor® Line Choice® Series iR Residential Packaged Dedicated Horizontal Heat Pumps
Warranties
Residential Applications Conditional Parts (Registration Required): 10 years
Residential Applications Compressor (Registration Required): 10 Years
Commercial Applications Parts: 1 Year
Commercial Applications Compressor: 5 Years
