• Unit is assembled, wired, charged with R-410A HFC refrigerant and run tested at the factory.

• Scroll compressors with internal line break overload and high-pressure protection.

• Two independent refrigerant circuits each with a scroll compressor provide two stage cooling/heating operation.

• TXV refrigerant metering system on each circuit. • High Pressure and Low Pressure/Loss of charge protection standard on all models.

• Solid Core liquid line filter drier on each circuit.

• Each evaporator and condenser coil is constructed as a single slab to facilitate easy cleaning for maintaining high efficiencies. • Cooling operation up to 125 degree F ambient.

• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.

• Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.

• Slide Out Indoor fan assembly for added service convenience.

• Powder Paint Finish meets ASTMB117 G90 galvanized steel coated on each side for maximum protection.

• Base pan with drawn supply and return opening for superior water management.

• Convertible airflow – vertical downflow or horizontal sideflow.

• Forkable base rails for easy handling and lifting.

• Single point electrical connections. • Internally sloped slide out condensate pan conforms to ASHRAE 62 standards. • High performance belt drive motor with variable pitch pulleys and quick adjust belt system.

• Permanently lubricated evaporator, and condenser motors.

• Condenser motors are internally protected, totally enclosed with shaft down design.

• 2 inch filter standard with slide out design. • 24 volt control system with resettable circuit breakers.

• Colored and labeled wiring.

• Copper tube/Aluminum Fin coils.

• Supplemental electric heat provides 100% efficient heating.

• Variable Frequency Drive (VFD). • MERV 8 and MERV 13 filters available as an option. • Compliant with ASHRAE 90.1-2019 and California Title 24.

Specifications

  • Two-Stage Cooling
  • VFD Technology

Certifications

Documents

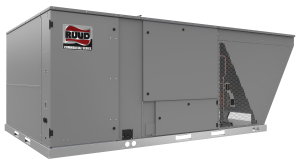

RHPH2T Resolute Line Package Heat Pump

Warranties

Compressor - Five (5) Years (Commercial Applications)

Parts - One (1) Year (Commercial Applications)
