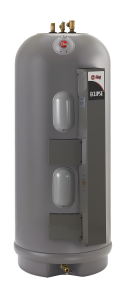

Eclipse™ non-metallic electric commercial water heaters are durable, lightweight, and offer an exclusive 10-year limited warranty

  • Non-metallic, lightweight composite tank – no anode rod required
  • High density polyethylene dent and scratch resistant jacket
  • System Sentinel LED indicators are provided for each element to show when power is on
  • Input options: 12.4, 18 or 24 kW
  • Voltage options: 208, 240, or 480 VAC in either single phase or 3-phase (277 VAC in single phase only)
  • Element wattages: 3100, 4500 or 6000 in each of the four voltages. The elements are low watt density design (46, 67, 90 watts/sq. in.) with titanium sheath for superior protection
  • Power control circuits use two surface mounted thermostats and operate in two stages – Lower control is for the lower two elements, which provides recovery for most needs. – Upper control is for the upper two elements, which operates during high demands

Efficiency

  • 98% thermal efficiency
  • Well insulated for reduced standby heat loss

Performance

  • Recovery rate: Up to 99 gallons GPH at a 100 degree rise
  • 170° F maximum delivered temperature

Capacity & Weight

  • 85 Gallons/140 lbs.
  • 105 Gallons/155 lbs. See chart for shipping weight

Easy Installation & Service

  • Eclipse’s lightweight tank is easier to maneuver and position
  • Control circuit switch provided for dry fire protection during installation
  • Bowl shaped tank bottom drains completely
  • Recessed drain valve is out of the way of brooms and scrubbers

Plus…

  • Four titanium elements for resistance to lime build-up
  • Full-port, full-flow, brass drain valve for faster draining
  • Temperature and pressure relief valve at top of unit
  • Water connections at the top of the tank are 1" swivel nuts. A nipple is installed on the outlet (1" x 3" long). The inlet has a vacuum valve connected with a 1 x 1 x 3/4 tee and a 1" close nipple to the swivel

 DESCRIPTION
ECLIPSE MODELS
GAL. CAP. MODEL NUMBER
85
 ME85-12-G
105
ME105-18-G

Specifications

  • Exclusive 10-year limited tank warranty
  • 85 and 105 gallon capacities
  • Inputs from 12, 18 and 24 KW
  • 208, 240, 277 and 480 voltages, single or three phase
  • Polybutene tank design – no anode rods

Energy Guide Details

Certifications

  • UL-EPH
  • C UL US
  • AHRI

Documents

Eclipse

Warranties

Tank - 10 Years

Parts - 1 Year
