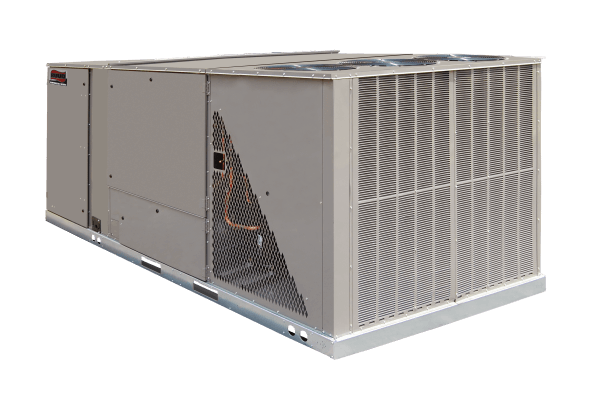

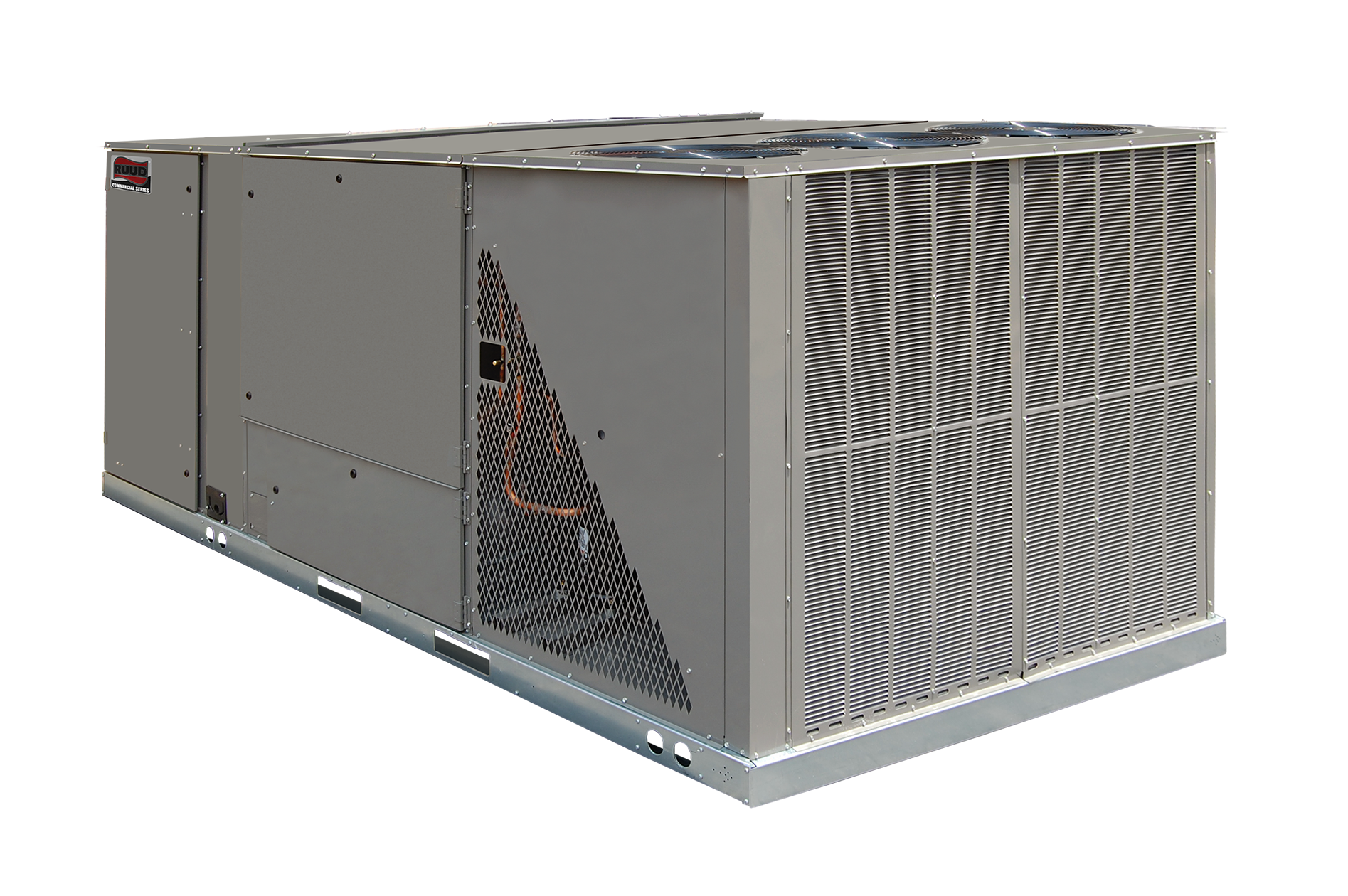

• H2AC™ Package Unit featuring eSync™ Integration Technology includes water circulation pump, refrigerant-to-water heat exchanger, and eSync Integration Technology control board for heat recovery during air conditioning mode to preheat potable water
  • R-410A HFC refrigerant.
  • Complete factory charged, wired and run tested.
  • Scroll compressors with internal line break overload and high-pressure protection.
  • Single or dual stage available.
  • Downflow only.
  • TXV refrigerant metering system.
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier.
  • Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
  • Cooling operation up to 125 degree F ambient.
  • Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
  • Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
  • Slide Out Indoor fan assembly for added service convenience.
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection G90 galvanized.
  • One piece top cover and one piece base pan with drawn supply and return opening for superior water management.
  • Forkable base rails for easy handling and lifting.
  • Single point electrical connections.
  • Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
  • Permanently lubricated evaporator and condenser motors.
  • Condenser motors are internally protected, totally enclosed with shaft down design.
  • 2 inch filter standard with slide out design.
  • 24 volt control system with resettable circuit breakers.
  • Colored and labeled wiring.
  • Copper tube/Aluminum Fin indoor coils with all aluminum MicroChannel condenser coil.
  • Supplemental electric heat provides 100% efficient heating.
  • Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
  • Pressure sensors provide refrigerant pressures, superheat, and subcooling on the ClearControl™ display.
  • H2AC Package Unit featuring eSync Integration Technology includes water circulation pump, refrigerant-to-water heat exchanger, and eSync Integration Technology control board for heat recovery during air conditioning mode to preheat potable water

Specifications

  • H2AC™ Package Unit featuring eSync™ Integration Technology
  • Three Phase Only
  • R-410A
  • Scroll Compressor
  • Potable water Pre-heating

Certifications

  • AHRI
  • C UL US

Documents

RLHL-C (10 Ton)

Warranties

Parts - 1 Year

Compressor - 5 Years
