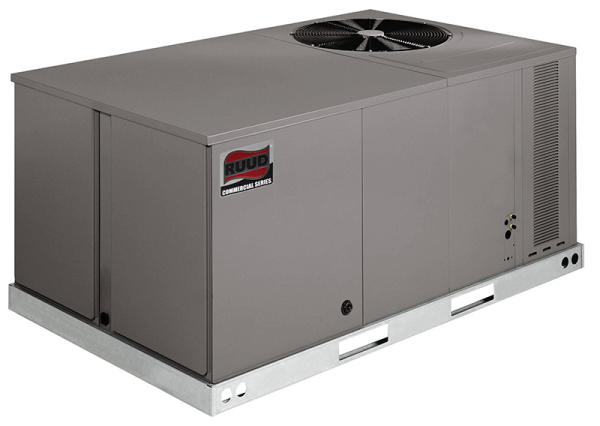

The 3-5 ton Ruud 13 SEER RLNL & 14 SEER RLPL, Package Air Conditioning units with ClearControl™, feature earth-friendly R-410A refrigerant. RLNL-G units also feature HumidiDry™, the Ruud exclusive dehumidification package unit solution. HumidiDry delivers maximum humidity control without compromising desired temperature set point for a high degree of comfort by delivering dry neutral air when in the dehumidification mode. The HumidiDry rooftop maintains humidity levels even when there's little or no demand for air conditioning. The Ruud Commercial Series Package Air Conditioners combine money-saving efficiency, whisper-quiet operation, environmental-friendliness and superb reliability to bring you peace of mind – year after year. Nothing performs more reliably than a Ruud Package Air Conditioner. It’s that simple. This platform provides you with a full line of capacities that are each AHRI-certified. The design is certified by CSA International.

Additional Benefits:

ClearControl™

Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.

The Scroll® Compressor

All of our residential/commercial package units, regardless of efficiency level, feature the Scroll Compressor. These scroll compressors use a more advanced technology than traditional reciprocating compressors. Molded compressor plug. They have fewer moving parts; they are quieter, more efficient, longer lasting.

Durable Cabinet

Our cabinets have a powder painted finish that protects them from the harshest weather extremes. There is a one-piece top cover and one piece base pan with drawn supply and return opening for superior water management. Externally mounted refrigerant gauge ports for easy service diagnostics. Single point electrical and gas connections. Easily removable filter, blower, gas heat, and compressor/ control access panels permits prompt service.

Motor/Fan Motor Mount

Our mount helps protect the fan motor from the elements for longer life. Its design dependability helps reduce vibration and noise. Permanently lubricated evaporator, condenser and gas heat inducer motors. Condenser motors are internally protected, totally enclosed with shaft down design.

Matched Blower/Evaporator Coil Unit

The blower is responsible for the flow of air into your duct work. It has been designed to match the MultiFlex® evaporator coil and other system components for maximum efficiency and quiet operation. In addition, the coil features rifled copper tubing and enhanced fins for improved efficiency. Single slab, single pass designed evaporator coil facilitates easy cleaning for maintained high efficiencies.

Service Fittings

Exterior service fittings enable a serviceman to quickly determine unit operating conditions.

Supplemental Electric Heating Strips

Supplemental electric heat strips up to 24 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point electrical and gas connections simplifies installation.

Other Benefits

  • Rugged base rails are included for improved installation and handling.
  • Easy to install plug-in; slip in, 100% fully modulating economizer.
  • 1 inch filter standard with slide out design.
  • Colored and labeled wiring.
  • Convertible airflow.
  • TXV refrigerant metering system on each circuit.
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier on each circuit.
  • Complete factory charged, wired and run tested.

Specifications

  • ClearControl™
  • HumidiDry™ (Reheat) on RLNL-G Models
  • Up to 14 SEER
  • 1 & 3 Phase
  • R-410A
  • Scroll Compressor

Certifications

Documents

Warranties

Conditional Parts Warranty - 10 Years (Residential Applications)

Limited Parts Warranty - 1 Year

Limited Compressor Warranty - 10 Years (Residential), 5 Years (Commercial)
