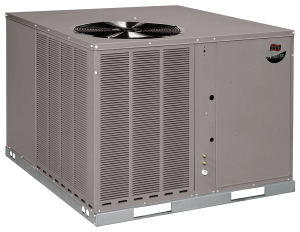

The 2-5 ton Ruud 13 SEER RSNL & 14 SEER RSPL, Package Air Conditioning units feature earth-friendly R-410A refrigerant. This platform provides you with a full line of capacities that are each AHRI-certified. The design is certified by CSA International.
Additional Benefits
Comfort Alert™ Diagnostics
The Comfort Alert™
diagnostics module is a breakthrough innovation for troubleshooting air
conditioning system failures. The module is installed in the control box
near the compressor contactor. By monitoring and analyzing data from
the Scroll® compressor and the thermostat demand, the module can
accurately detect the cause of electrical and system related failures
without any sensors. A flashing LED indicator communicates the ALERT
code and guides the service technician more quickly and accurately to
the root cause of a problem.
NOTE: Single phase module does not provide safety protection! The Comfort Alert module is a monitoring device and cannot control or shut down the compressor unless used with a White Rodgers IF95-CA397 Thermostat.
NOTE: Three phase module provides compressor protection and will shut down the compressor when compressor damaging conditions are detected.
The Scroll® Compressor
All of
our residential/commercial package units, regardless of efficiency
level, feature the Scroll Compressor. These scroll compressors use a
more advanced technology than traditional reciprocating compressors.
They have fewer moving parts, and they are quieter, more efficient, and
longer lasting. The
5-Ton RSPL model features Scroll UltraTech™ 2-Stage compressors with
Comfort Alert™ diagnostics (see below), high/low pressure switches, and
hard start kits.
Durable Cabinet with Louvered Condenser Compartment
Our
cabinets have a powder painted finish that protects them from the
harshest weather extremes. And our louvered condenser compartment is the
best in the industry for protecting the condenser coil against yard
hazards and weather extremes. There is a One-piece
top with a drip lip to help keep water off of the unit sides. Supply
and return air openings feature a one-inch tall flange to prevent water
migration into the ductwork. Access panels have “weep holes” and
channels to further help manage water run-off. Side and down discharge
options available on all models. Easily accessible blower section
complete with slide-out blower. Refrigerant connections are conveniently
located for easy service diagnostics.
Grille/Fan Motor Mount
Our
mount helps protect the fan motor from the elements for longer life. Its
design dependability helps reduce vibration and noise.
Easily Accessible Control Box
Operational controls are “up front” for quick installation and easy service diagnostics.
Matched Blower/Evaporator Coil Unit
The blower is responsible for the flow of air into your duct work. It
has been designed to match the MultiFlex® evaporator coil and other
system components for maximum efficiency and quiet operation. In
addition, the coil features rifled copper tubing and enhanced fins for
improved efficiency.
Service Fittings
Exterior service fittings enable a serviceman to quickly determine unit operating conditions.
Supplemental Electric Heating Strips
Supplemental electric heat strips up to 15 kW are available (field or
factory installed) for periods of extreme cold temperatures. Single
point wiring simplifies installation.
Other Benefits
- All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
- Thermal expansion valves are standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
- Filter drier standard on all models (not shown).
- Rugged base rails are included for improved installation and handling.
Specifications
- Up to 14 SEER
- Convertible Airflow
- 1 & 3 Phase
- R-410A
- Scroll Compressor
Certifications
Documents
Warranties
Conditional Parts Warranty - 10 Years (1-Phase Residential - Registration Required), 1 Year (Commercial)
Compressor Warranty - 10 Years (1-Phase Residential)
