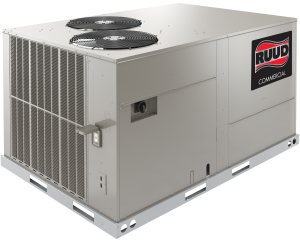

RACDZT Renaissance Line Achiever® Series Packaged A/C
- Factory charged with R410A HFC refrigerant
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- Model RACDZT has a two-stage compressor
- Convertible airflow - vertical down flow or horizontal side flow
- Single-point electrical connections
- Forkable base rails for easy handling and lifting
- Cooling operation up to 125°F ambient
- MicroChannel evaporator and condenser coil
- PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, Qwik-Clean Drain Pan™
- Plus One® Diagnostics with Dual 7-Segment LED Display
- One-piece top cover and one-piece base pan with drawn supply and return opening
- Two-piece control door
- 1/4 turn fasteners on filter access door
- Color-coded and labeled wiring
- External lockable gauge ports
- TXV refrigerant metering system
- Solid-core liquid line filter drier
- High pressure and low pressure/loss of charge protection
- Insulation encapsulated throughout entire unit
- High performance belt drive motor with variable pitch pulleys and quick adjust belt system
- Variable Frequency Drive (VFD) blower is standard on Model RACDZT
- New product footprint with matching connections
- Improved factory lead times
- Nominal sizes: 7.5-12.5 Tons
- Up to 11.2 EER/14.8 IEER
- Two-stage cooling
- Coil Type: Full MicroChannel
- Optional PlusOne® ClearControl™/OptionalPlusOne® HumidiDry®
RACDZT (7.5-12.5 Ton)
- Ruud Commercial Renaissance Line Technology Brochure
- Warranty Card
- Specification Sheet
- Ruud Commercial Renaissance Line Trade Guide Brochure
- Ruud Commercial Renaissance Line Customer Brochure
- Web Product Image
3 Phase, Commercial Applications................Five (5) Years
Aluminized Heat Exchanger
3 Phase, Commercial Applications...............Ten (10) Years
Stainless Steel Heat Exchanger
3 Phase, Commercial Applications .........Twenty (20) Years
3 Phase, Commercial Applications................One (1) Year
