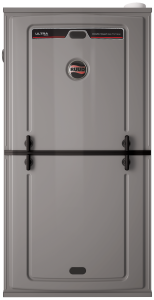

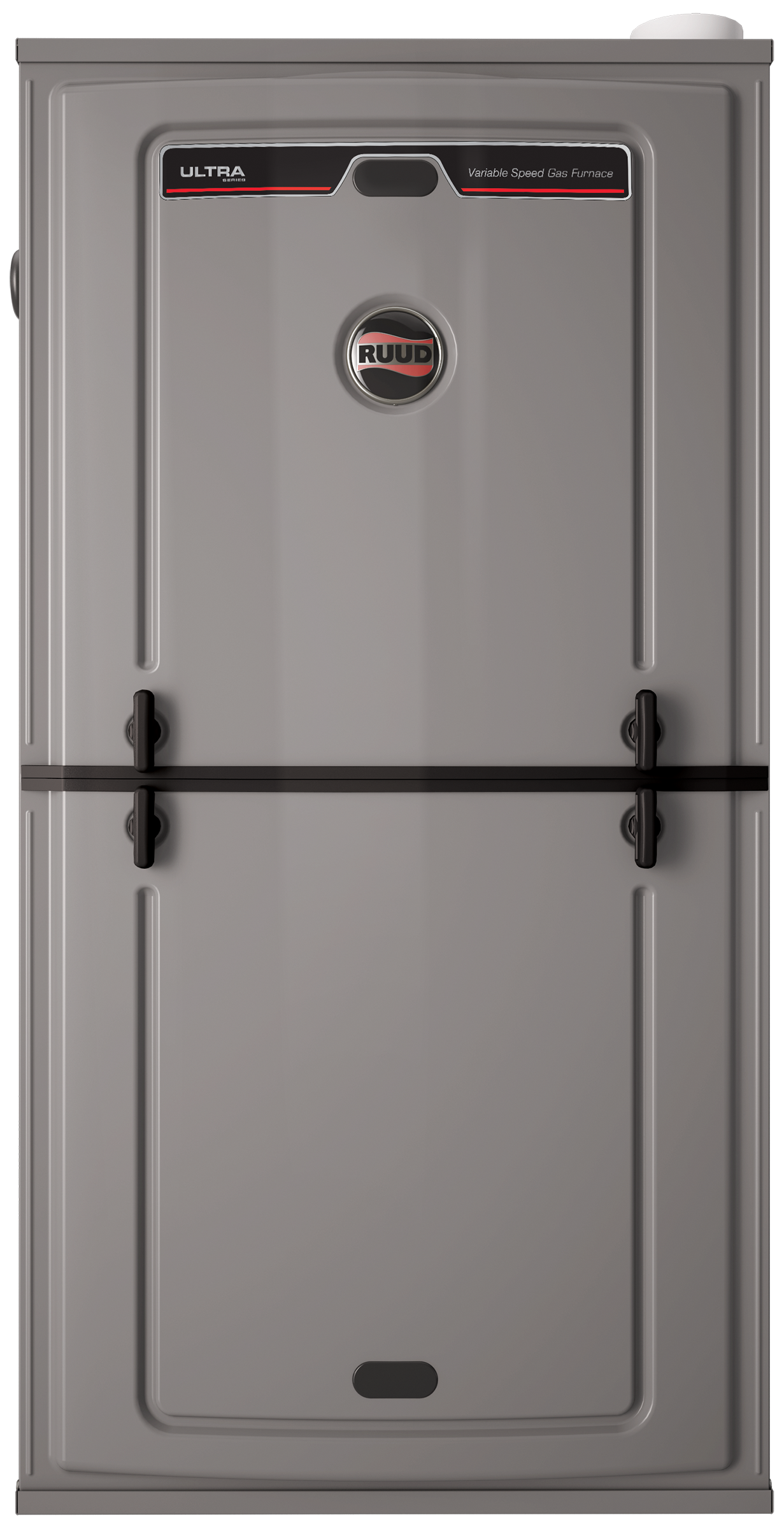

Ruud Ultra Series™ Communicating 2-Stage Variable Speed Multi Position Gas Furnaces

  • 96% residential gas furnace CSA certified
  • 4 way multi-poise design
  • Two stages of operation to save energy and maintain optimal comfort level.
  • Variable speed blower motor technology provides ultimate humidity control, quieter sound levels, and year round energy savings.
  • EcoNet™ enabled HVAC Product
  • PlusOne™ Diagnostics 7-Segment LED all units
  • PlusOne™ Ignition System – DSI for reliability and longevity
  • PlusOne™ Water Management System with patented Blocked Drain Sensor
  • Heat exchanger is removable for improved serviceability. Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.
  • Low profile “34 inch” cabinet ideal for space constrained installations.
  • Blower Shelf design – serviceable in all furnace orientations
  • Pre marked hoses – insures proper system drainage
  • Vent with 2" or 3" PVC
  • Replaceable Collector box
  • Hemmed edges on cabinet and doors
  • Quarter turn fasteners for tool less access
  • Integrated control boards feature dip switches for easy system set up
  • Self priming condensate trap
  • Solid bottom included
  • Compatible with single or two stage thermostats. For optimal performance a two stage thermostat is recommended.

Specifications

  • 96% residential gas furnace CSA certified
  • 4 way multi-poise design
  • ECM Motor
  • Two-stage operation
  • Ruud-Exclusive PlusOne™ Ignition System
  • Ruud-Exclusive PlusOne™ Water Management System
  • Industry-First PlusOne™ Diagnostics
    • IOS 9001:2008
    • EcoNet
    • Canada CSA
    • US CSA (Star)
    • AHRI
    • Energy Star

    Documents

    U96V (UFQA)

    Warranties

    Parts - 10 Years

    Heat Exchanger - Limited Lifetime

    See product warranty card, or contact your local Ruud dealer for additional information Warranty Information.
