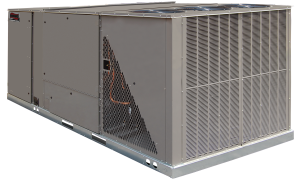

H2AC™ Rooftop Unit featuring eSync™ Integration Technology

H2AC™ Rooftop Unit featuring eSync™ Integration Technology

WHERE TO BUY

Local Savings

Features:
  • R-410A HFC refrigerant
  • Complete factory charged, wired and run tested
  • Scroll compressors with internal line break overload and high-pressure protection
  • Dual Independent compressors for two-stage operation
  • Downflow only
  • TXV refrigerant metering system
  • High Pressure and Low Pressure/Loss of charge protection standard on all models
  • Solid Core liquid line filter drier
  • Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies
  • Cooling operation up to 125 degree F ambient
  • Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream
  • Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers
  • Slide Out Indoor fan assembly for added service convenience
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection G90 galvanized
  • One piece base pan with drawn supply and return opening for superior water management
  • Forkable base rails for easy handling and lifting
  • Single point electrical connections
  • Internally sloped slide out condensate pan conforms to ASHRAE 62 standards
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system
  • Permanently lubricated evaporator and condenser motors
  • Condenser motors are internally protected, totally enclosed with shaft down design
  • 2 inch filter standard with slide out design
  • 24 volt control system with resettable circuit breakers
  • Colored and labeled wiring
  • Copper tube/Aluminum Fin indoor coils with all aluminum MicroChannel condenser coil
  • Supplemental electric heat provides 100% efficient heating
  • Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control
  • Pressure sensors provide refrigerant pressures, superheat, and subcooling on the ClearControl™ display
  • H2AC Package Unit featuring eSync Integration Technology includes water circulation pump, refrigerant-to-water heat exchanger, and eSync Integration Technology control board for heat recovery during air conditioning mode to preheat potable water.

Specifications

  • Model: RLHL-D
  • Clear Control
  • 15 Ton
  • ASHRAE Compliant

Certifications

  • AHRI
  • C UL US Listed

Documents

RLHL-D (15 Ton)

Warranties

Compressor - 5 Years (3 Phase, Commercial Applications)
Parts - 1 Year (3 Phase, Commercial Applications)
