• Lighter Footprint & Less Environmental Impact from New
7mm Condenser Coil provided by a decrease in refrigerant
requirements and an overall weight reduction

• Efficient Cooling up to 14.3 SEER2/11.7 EER2

• PlusOne Expanded Value Space: 3in – 4in – 5 in service
valve space – provides a minimum working area of 27-square
inches for easier access

• PlusOne Triple Service Access: 15 in wide, industry leading
corner service access – makes repairs easier and faster. The
two fastener, removable corner allows optimal access to
internal unit components. Individual louver panels come out
once fastener is removed, for faster coil cleaning and easier
cabinet reassembly

• Single Stage Scroll compressor – uses 70% fewer moving
parts for higher efficiency and increased reliability

• System Matching Simplicity – matches to all tiers of gas
furnaces
• Modern cabinet aesthetics – High curb appeal with visually
appealing design

• Curved louver panels – provide ultimate coil protection,
enhance cabinet strength, and increased cabinet rigidity

• Diagnostic service window with two-fastener opening –
provides access to the high and low pressure.

• External gauge port access – allows easy connection of
“low-loss” gauge ports

• QR code – provides technical information on demand for
faster service calls

• Fan motor harness with extra-long wires allows unit top to
be removed without disconnecting fan wire.

Specifications

Cooling Efficiency: 15.2 SEER2/12 EER2
Nominal Sizes: 11/2 to 5 Ton [5.28 to 17.6 kW]
Cooling Capacities: 17.1 to 55.5 kBTU [5.0 to 16.3 kW]

Certifications

Documents

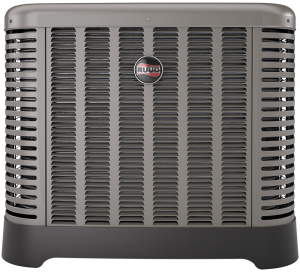

RA14AZ Endeavor™ Achiever® Series iM Air Conditioner

    Warranties

    Conditional Parts
    (Registration Required)..................................Ten (10) Years
